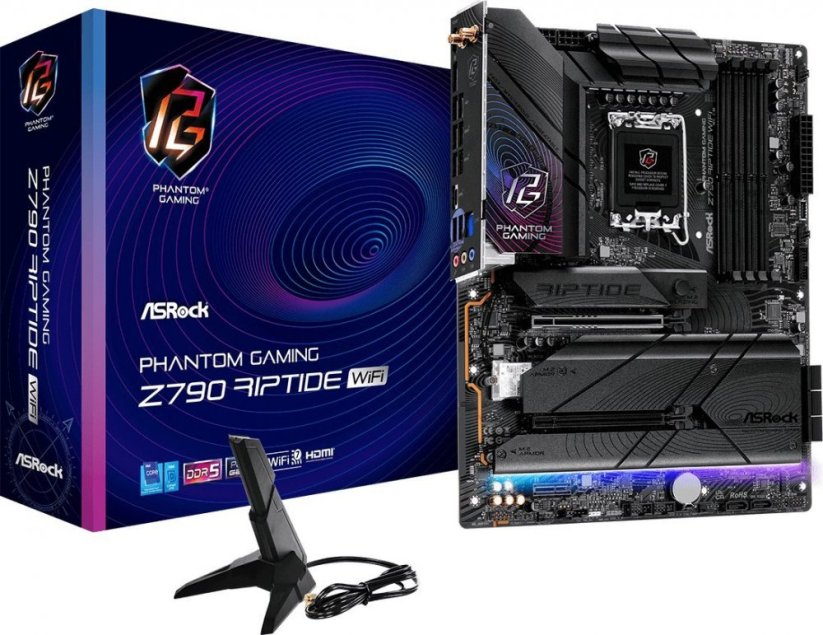

ASRock Z790 RIPTIDE WIFI

Supports 13th Gen & 12th Gen Intel Core™ Processors 14+1+1 Phase Power Design, Dr.MOS pre VCore+GT 4 x DDR5 DIMM, supports up to 6800+(OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi

Graphics Output Options: 1 HDMI, 1 DisplayPort 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 1 Blazing M.2 (PCI Gen5x4), 4 Hyper M.2 (PCI Gen4x4), 8 SATA3 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Rear), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)

Killer 2.5G LAN

Unique Feature

Superb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5Rock-Solid Durability- 14+1+1 Power Phase, 50A Dr.MOS pre VCore+GT- Flexible Integrated I/O ShieldUltrafast Connectivity- Killer 2.5G LAN- ASRock Lightning Gaming PortsEZ Update- ASRock Auto Driver InstallerEZ Troubleshooter- ASRock Post Status Checker

CPU - Supports 13th Gen & 12th Gen Intel Core™ Processors (LGA1700)- Supports Intel Hybrid Technology- Supports Intel Turbo Boost Max 3.0 Technology- Supports Intel Thermal Velocity Boost (TVB)- Supports Intel Adaptive Boost Technology (ABT)

Chipset - Intel Z790

Memory - Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*- Max. capacity of system memory: 128 GB- Supports Intel Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively.1DPC 2R Up to 6000 MHz (OC), 4400 MHz Natively.2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.2DPC 2R Up to 4800 MHz (OC), 3600 MHz Natively.

BIOS - 128Mb AMI UEFI Legal BIOS with GUI support

Graphics - Intel Xe Graphics Architecture (Gen 12)- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 a maximálne resolution up to 4K 60Hz- 1 x DisplayPort 1.4 s DSC (compressed), podporou HDCP 2.3 a maximálnou resolution up to 8K 60Hz / 5K 120Hz *Intel UHD grafické budovy v Visuals and VGA výstupy môžu byť podporované len s procesormi, ktoré sú integrované GPU.

Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio

LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Killer E3100G- Supports Killer LAN Software

Slots

CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*- 1 x PCIe 3.0 x1 Slot (PCIE3)*- 1 x M.2 Socket (Key E), podpora typu 2230 WiFi/BT PCIe WiFi module a Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire™ *If M2_5 is occupied, PCIE1 bude downgrade to x8 mode.Supports NVMe SSD as boot disks

Storage

CPU:- 1 x Hyper M.2 Socket (M2_1, Key M), podpora typu 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Blazing M.2 Socket (M2_5, Key M), podpora typu 2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), podpora typu 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), podpora typu 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_4, Key M), podpora typu 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 8 x SATA3 6.0 Gb/s Connectors *Supports Intel Volume Management Device (VMD)Supports NVMe SSD as boot disksAk M2_5 is occupied, PCIE1 bude downgrade to x8 mode.Either M2_1 or M2_5 môže byť usadený v čase.

RAID - Supports RAID 0, RAID 1, RAID 5 a RAID 10 pre SATA storage devices- Supports RAID 0, RAID 1 a RAID 5 pre M.2 NVMe storage devices

USB - 1 x USB 3.2 Gen2x2 Type-C (Front)- 2 x USB 3.2 Gen2 Type-A (Rear)- 1 x USB 3.2 Gen1 Type-C (Rear)- 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)- 6 x USB 2.0 (2 Rear, 4 Front) *All USB ports support ESD Protection

Connector - 1 x SPI TPM Header- 1 x Power LED a Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)*****- 4 x Chassis/Water Pump Fan konektory (4-pin) (Smart Fan Speed Control)******- 1 x 24 pin ATX Power Connector- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 1 x Thunderbolt™ AIC konektor (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

• Supporty do 12V/3A, 36W LED Strip
• * Support v celkovej výške 5V/3A, 15W LED Strip
• **CPU_FAN1 podporuje fanúšik power up to 1A (12W).**** CPU_FAN2/WP podporuje fanúšik power up to 2A (24W).
• ****CHA_FAN5 podporuje fanúšik power up to 1A (12W).
• *****CHA_FAN1~4/WP podporovať fanúšik power up to 2A (24W).CPU_FAN2/WP a CHA_FAN1~4/WP môže auto zistiť 3-pin alebo 4-pin fan is in use.

Rear Panel I/O - 2 x Antenna Mounting Points- 1 x HDMI Port- 1 x DisplayPort 1.4- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)- 1 x USB 3.2 Gen1 Type-C Port- 4 x USB 3.2 Gen1 Type-A Ports (USB32_56 sú Lightning Gaming Ports.)- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- HD Audio Jacks: Line in / Front Speaker / Microphone

Softvér and UEFI

Softvér- ASRock Motherboard Utility (Phantom Gaming Tuning)- Killer Control Center- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash- ASRock Easy RAID Installer *Tieto nástroje sa môžu stiahnuť z ASRock Live Update & APP Shop.

Accessories - 1 x User Manual- 2 x SATA Data Cables- 5 x Screws for M.2 Sockets

Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm- 2oz Copper PCB

OS - Microsoft Windows 10 64-bit / 11 64-bit *Windows 10 only supports version 21H2 or later

Certifications - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
